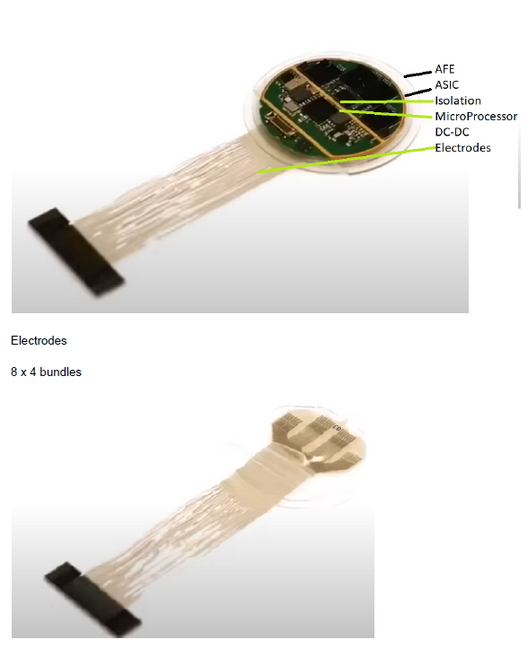

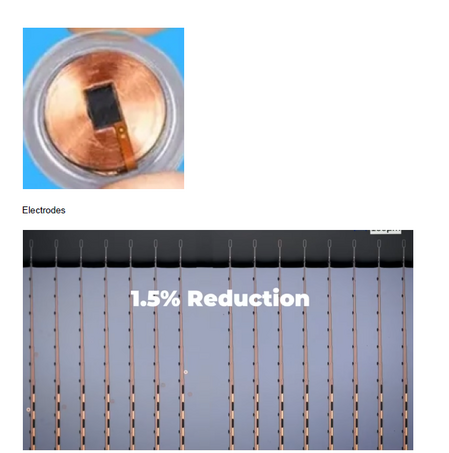

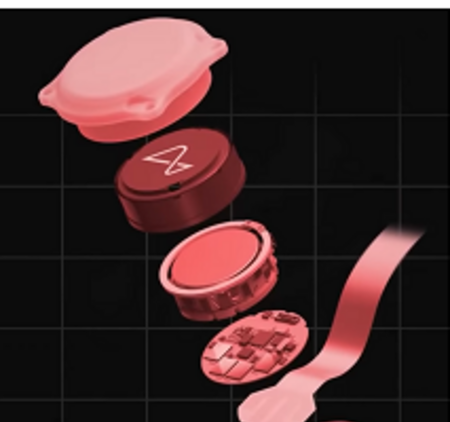

Blocks explained left to right
Analog Front End (AFE)

Introduction
An Analog Front End (AFE) plays a crucial role in processing the weak bioelectrical
signals. These signals are captured from electrodes and must be amplified, filtered, and
conditioned before they are converted into digital form for further analysis. The AFE
ensures that the signal is accurately represented by addressing noise, interference, and signal integrity issues.
Key Components of the AFE
1. Input Stage:
○ Electrodes capture the bio-potential signals from the body. The raw
signal is very weak, typically ranging from 0.5 mV to 5 mV, and is often
contaminated with noise, such as muscle artifacts and power line
interference.
○ Protection Circuitry: To safeguard the AFE from electrostatic discharge
(ESD) and voltage spikes, protection components like diodes or resistors
are placed at the input.
2. Instrumentation Amplifier (IA):
○ This is the heart of the AFE and is responsible for the first stage of
amplification. It typically provides high common-mode rejection ratio
(CMRR) to suppress noise and interference, such as 50/60 Hz power line
hum.
○ The IA is configured to provide differential amplification of the signals
from the electrodes, ensuring that the small potential difference from the
heart activity is amplified while common-mode signals (e.g., noise) are
rejected.
○ A typical IA might have a gain of 10 to 1000, depending on the signal
strength and noise levels.
3. Filters:
○ High-pass filter (HPF): Removes the DC offset and low-frequency
artifacts like baseline wander (e.g., caused by respiration). The cutoff
frequency is typically set around 0.05 Hz to 0.5 Hz.
○ Low-pass filter (LPF): Reduces high-frequency noise such as
electromyographic (EMG) noise from muscle activity or high-frequency
interference. The cutoff frequency is usually set around 100 Hz to 150 Hz,
as signals are mostly below 100 Hz.
○ Notch filter: A specialized filter (often set at 50/60 Hz) is used to
eliminate power line interference without affecting the signal.
4. Gain Stage (Programmable Gain Amplifier - PGA):
○ After initial amplification and filtering, the signal may undergo further
amplification through a programmable gain amplifier (PGA). The PGA
allows for dynamic adjustment of the gain to accommodate varying signal
amplitudes or noise environments.
○ Typical gain values can be between 10 and 100, allowing the AFE to
handle different patients and electrode placements.
5. Analog-to-Digital Converter (ADC):
○ The ADC converts the conditioned analog signal into a digital format for
further processing by digital systems (such as microcontrollers or DSPs).
○ For accurate signal representation, the ADC should have:
■ A resolution of 12 to 16 bits to capture the fine details of the
waveform.
■ A sampling rate of at least 500 samples per second (preferably
higher, around 1000 Hz) to accurately capture the signal’s
frequency content.
6. Common-Mode Rejection and Right Leg Drive (RLD):
○ To improve the signal-to-noise ratio, the common-mode voltage present at
the electrodes can be minimized using an RLD circuit. This circuit actively
senses the common-mode voltage and drives it back into the body
through a reference electrode (typically placed on the right leg).
○ This RLD circuit improves the common-mode rejection ratio (CMRR) by
feeding a counter-phase signal back into the body, reducing the effect of
interference and noise.
7. DC Offset Cancellation:
○ signals can suffer from a DC offset, which is caused by electrode-skin
interface potentials or mismatches in electrode impedance. A DC offset
cancellation block is often included to remove or minimize this offset
before amplification.
Signal Path Flow
1. Electrode Pickup: Weak heart signals are captured.
2. Protection: Input protection to handle environmental disturbances.
3. Initial Amplification: The IA boosts the differential signal and rejects
common-mode noise.
4. Filtering: Low-frequency (HPF) and high-frequency (LPF) filters clean the signal.
5. Gain Adjustment: A PGA allows dynamic control of the signal’s amplitude.
6. Digitization: The ADC converts the conditioned signal to digital for further
analysis.
Challenges and Design Considerations
● Noise Reduction: signals are prone to noise from various sources like motion
artifacts, power line interference, and muscle activity. Proper filtering and
common-mode rejection are essential.
● Low Power Consumption: Many devices, especially portable or wearable ones,
require low power AFEs to ensure long battery life.
● High CMRR: Maintaining a high CMRR is crucial for rejecting interference,
particularly from the power line.
● Patient Safety: Isolation and protection circuits are mandatory to protect the
patient from electrical faults and ensure the system's safety.
ASIC
ASIC to Interface an Analog Front End (AFE) to a Microcontroller
interface for Speed and Low Power
An Application-Specific Integrated Circuit (ASIC) can be custom-designed to
interface an Analog Front End (AFE) with a microcontroller, optimizing both speed and
power efficiency. When integrating an AFE (like in an system) with a microcontroller, the
ASIC acts as a highly specialized bridge, handling signal processing, communication,
and power management in a way that general-purpose components (like standalone
ADCs or signal processors) cannot match in terms of performance and power
consumption.
Here’s a detailed explanation of how an ASIC can be used in this context:
1. ASIC Optimization for Speed and Low Power
ASICs are custom-designed to perform specific tasks. By tailoring an ASIC
specifically for interfacing between the AFE and the microcontroller, the following
advantages are achieved:
Speed Optimization:
● Dedicated Processing Paths: The ASIC can be designed with
specialized signal processing blocks that are optimized for signal
characteristics. By using custom analog and digital circuits, the signal
conditioning (e.g., filtering, amplification, and digitization) can be done
more efficiently than with off-the-shelf components.
● Parallel Processing: ASICs allow for parallelization of certain tasks. For
instance, while the AFE handles the analog input, the ASIC can
simultaneously prepare the digital signal for communication with the
microcontroller, reducing overall processing latency.
● Custom Data Pipelines: The ASIC can create a high-speed pipeline to
transfer data directly from the ADC to the microcontroller’s memory via
Direct Memory Access (DMA) or through high-speed interfaces (e.g.,
SPI or I2C). This reduces the need for the microcontroller to constantly
poll or handle the incoming data, freeing it for other tasks and increasing
overall system speed.
Power Optimization:
● Low-Power Design: ASICs are designed from the ground up with
specific power requirements in mind. Power-hungry components (like
generic ADCs or processing units) are replaced with highly optimized
blocks, designed to perform the same function using less power. By
reducing redundant circuitry and ensuring each block is as efficient as
possible, the ASIC minimizes power draw.
● Power Management Circuits: An ASIC can include integrated power
management blocks that dynamically control the power supply to different
components, powering down or putting certain blocks into low-power or
idle states when not in use. For example, during periods of inactivity, the
ADC can be turned off or put into a sleep mode.
● Dynamic Clock Gating: ASICs can be designed with clock gating, a
technique that shuts down the clock to certain parts of the circuit when
they are not needed. This significantly reduces dynamic power
consumption, as unnecessary transitions are minimized.
● Lower Voltage Domains: ASICs often use lower voltage power domains
compared to off-the-shelf components. By designing the ASIC to work at
lower supply voltages, overall power consumption is reduced, benefiting
power-sensitive applications like portable or wearable systems.
2. Analog-to-Digital Conversion in the ASIC
● The ASIC often integrates the Analog-to-Digital Converter (ADC)
required to convert the conditioned analog signal from the AFE into a
digital format that the microcontroller can process. ASICs can feature
custom ADC architectures, optimized for both the specific signal
characteristics of the and power efficiency:
○ Sigma-Delta ADCs for high-resolution, low-noise environments
(often used in bio-signal processing) can be included.
○ Successive Approximation Register (SAR) ADCs can be
integrated for high-speed conversion with low power consumption.
● Customization of Resolution and Sampling Rate: The ASIC allows for
precise control over the ADC’s resolution (e.g., 12 to 16 bits) and
sampling rate (e.g., 500 Hz to 1 kHz) to meet the requirements of the
signal while minimizing unnecessary power consumption.
3. Signal Conditioning and Processing in the ASIC
● An ASIC can also handle the signal processing that would otherwise be
done in software or in external components. Tasks like:
○ Filtering (high-pass, low-pass, and notch filters)
○ Baseline drift removal
○ Signal normalization
○ Digital filtering (e.g., moving average, FIR, or IIR filters)
This on-chip signal processing reduces the computational burden on the
microcontroller, allowing it to run at a lower clock speed or remain in low-power
states for longer periods, saving energy.
4. Data Communication with the Microcontroller
● The ASIC can be optimized for efficient data transfer to the
microcontroller. For example:
○ Custom Protocols: Instead of using standard communication
protocols (like SPI or UART), the ASIC can implement a custom
low-power, high-speed communication interface specifically
designed for the amount of data being transmitted (e.g.,
compressed or packetized data).
○ Efficient Interrupt Management: The ASIC can intelligently
manage data interrupts. For instance, instead of waking up the
microcontroller for every data sample, the ASIC can buffer the
data and send it in bursts, reducing the frequency of wake-ups
and conserving energy in the microcontroller.
○ Direct Memory Access (DMA): The ASIC can directly interface
with the microcontroller’s DMA controller, allowing data to be
transferred directly to memory without involving the CPU, further
reducing processing time and energy consumption.
5. Built-in Calibration and Self-Test Features
● An ASIC can include integrated calibration routines that automatically
adjust the gain, offset, or filter settings to optimize signal quality, removing
the need for external adjustments or extra processing by the
microcontroller.
● Self-test functionality can also be included in the ASIC to verify signal
integrity, electrode connection, or noise levels, offloading these diagnostic
tasks from the microcontroller.
6. Low Power Operation with Wake-Up Functions
● The ASIC can monitor the signal continuously in a low-power mode and
wake up the microcontroller only when a significant event occurs, such as
an abnormal heartbeat or an arrhythmia. This is particularly useful for
battery-powered or wearable devices where the microcontroller can stay
in a sleep mode for extended periods to conserve power.
Example: ASIC in a Wearable System
For example, in a wearable system, an ASIC designed specifically for
interfacing the AFE to the microcontroller would handle the following:
● Amplifying and digitizing the signal with minimal noise and power
consumption.
● Filtering and processing the signal before transferring it to the
microcontroller for further analysis.
● Communicating efficiently with the microcontroller, possibly through a
power-efficient, low-latency interface, while employing event-driven
wake-up mechanisms to minimize the microcontroller’s active time.
● Ensuring that the entire system, including the microcontroller, can operate
at ultra-low power, which is crucial for long-term monitoring in portable
or wearable applications.
Conclusion
By using an ASIC to interface the AFE with a microcontroller, the system can be
optimized for both speed and low power consumption. ASICs provide highly
specialized analog and digital circuits that are tailored to the specific signal
processing needs, allowing for faster data handling, efficient power management,
and reduction of the computational load on the microcontroller. This is particularly
beneficial in applications like portable or wearable systems like the nuerolink,
where power efficiency is critical for extended battery life, and speed is essential
for real-time signal processing.
Isolation of Analog and Digital Systems and Its Role in Enabling "Charging
on the Go"

Introduction
In mixed-signal systems, where both analog and digital components are used, isolation
between the two domains is critical for maintaining signal integrity, reducing noise, and
ensuring safety. This is especially important in medical or sensitive electronics, such as
in wearable devices or portable medical devices like monitors, where analog signals
(e.g., bioelectric signals) are processed alongside digital components (e.g.,
microcontrollers or wireless communication systems).
In addition to isolation, many modern systems require the ability to charge on the go
(e.g., wireless charging or continuous operation during charging). This can introduce
further challenges in mixed-signal environments, making the isolation of power and data
paths even more critical to ensure device reliability and user safety.
Why Isolation is Needed in Mixed-Signal Systems
1. Preventing Noise Interference:
○ Analog signals (like those in EKGs) are typically low-voltage and highly
sensitive to noise. Any coupling of digital noise from high-speed
components (e.g., processors, wireless transceivers) into the analog
domain can degrade the signal quality and affect the performance of the
system. Isolating analog and digital sections minimizes this noise
coupling.
2. Reducing Ground Loops:
○ A ground loop occurs when multiple ground connections between analog
and digital circuits create potential differences, leading to unwanted noise.
Proper isolation prevents this by ensuring that the analog and digital
sections operate with independent ground references, especially in
systems with shared power supplies or external power inputs like
charging circuits.
3. Protecting Sensitive Components and Ensuring Safety:
○ In applications like medical devices, patient safety is critical. Isolation
barriers can prevent high-voltage spikes or digital switching noise from
affecting sensitive analog circuits or even causing harm to the patient.
This is particularly relevant when external power sources, such as a
charging system, are involved.
Isolation Techniques in Analog and Digital Systems
1. Power Isolation
○ Power isolation between analog and digital circuits ensures that any noise
from the digital power supply doesn’t affect the performance of sensitive
analog circuitry.
○ Techniques for Power Isolation:
■ Separate Power Domains: The analog and digital sections are
powered by separate power supplies or isolated regulators. For
instance, the analog section may use a linear regulator (LDO) for
clean, low-noise power, while the digital side uses a switching
regulator optimized for efficiency.
■ Decoupling Capacitors: Placing decoupling capacitors close to
the analog and digital power inputs helps filter out high-frequency
noise. The capacitors isolate transient power fluctuations
generated by digital components from reaching the analog
circuitry.
■ DC-DC Isolation Converters: When completely independent
power domains are required, isolated DC-DC converters can be
used. These converters ensure that no direct electrical connection
exists between the analog and digital power rails, isolating both
noise and voltage surges.
2. Signal Isolation
○ Signal isolation ensures that data can be transferred between the analog
and digital domains without direct electrical connection, preserving the
signal integrity of both.
○ Techniques for Signal Isolation:
■ Optocouplers: These are commonly used for isolating control
signals or data lines between the digital and analog systems.
Optocouplers transfer signals using light, providing excellent
electrical isolation and preventing digital noise from reaching the
analog domain.
■ Digital Isolators: These devices use capacitive or inductive
coupling to transmit digital signals across an isolation barrier.
They provide faster signal transfer rates than optocouplers and
are widely used for isolating digital buses (e.g., SPI or I2C) from
sensitive analog systems.
■ Isolation Amplifiers: For analog signal transfer, isolation
amplifiers can be used to transmit analog signals across a barrier
without allowing electrical noise or ground potential differences to
interfere.
3. Ground Isolation
○ Separate Ground Planes: In PCB designs, analog and digital circuits
should have separate ground planes. These ground planes should only
meet at a single point, often near the power supply, to avoid creating
ground loops.
○ Isolated Grounds: In some cases, completely isolated grounds for
analog and digital systems are necessary, particularly in systems where
external factors (such as charging or data communication) might
introduce noise or current spikes into the digital ground.
Isolation in "Charging on the Go" Scenarios
In systems where charging on the go is required, such as in wearable devices or
portable medical electronics, isolation becomes even more critical. Charging
introduces new paths for noise and interference, especially when using wireless
charging or charging from external power sources like USB.
1. Wireless Charging
○ Wireless charging can be a significant source of noise, particularly in the
form of electromagnetic interference (EMI). The high-frequency switching
involved in wireless charging systems can couple into sensitive analog
circuits.
○ EMI Shielding: To prevent interference, shielding the analog circuits and
using metal enclosures around critical sections can help. Additionally,
proper isolation between the charging circuit and the analog processing
system (using techniques like those mentioned earlier, such as
optocouplers or digital isolators) can prevent noise from contaminating the
signal processing path.
○ Power Management Isolation: During wireless charging, the charging
power management IC (PMIC) should have well-isolated inputs and
outputs to ensure that charging currents do not couple into the analog
circuitry. Techniques like transformer-based isolation in the power
transfer stages help ensure that charging noise is confined to the
charging circuit, without leaking into sensitive analog or digital paths.
2. Wired Charging (USB or External Power)
○ Ground Loop Prevention: When charging from external sources (e.g.,
USB), there’s a risk of ground loops forming between the analog ground
and the ground of the external power supply. Isolating the charging
ground from the system ground can mitigate this. Galvanic isolation is
particularly useful here, ensuring that no direct electrical connection exists
between the charging ground and the system ground.
○ Data and Power Isolation: If the device is designed to transfer data while
charging (e.g., via USB), both power isolation and data signal isolation
become necessary to prevent noise from charging currents from
interfering with communication protocols or analog signal processing.
Isolation ICs for USB communication (or other data transfer protocols)
help ensure that data integrity is preserved.
3. Battery Management Systems (BMS)
○ Many portable and wearable devices use rechargeable batteries. The
battery management system (BMS) controls the charging and
discharging of the battery, ensuring safety and efficiency.
○ A BMS can be designed with isolation circuitry that allows the system to
operate (process analog signals and communicate digitally) while the
battery is charging, without introducing noise or ground loops. This
ensures the device remains functional and accurate even during power
transients associated with charging.
Example: Wearable Medical Device with Charging on the
Go
In a wearable system, isolation would be designed as follows:
● The analog front end (AFE) responsible for capturing and processing the heart’s
bioelectrical signals would have its own isolated power supply, possibly using a
linear regulator to minimize noise.
● The digital processing unit (e.g., a microcontroller or wireless communication
module) would operate from a separate switching power supply for efficiency,
and a digital isolator would ensure noise from the high-speed digital operations
doesn’t affect the AFE.
● If the device supports wireless charging, an isolated charging module would
be included to prevent EMI from affecting the readings.
● During wired charging (via USB), both data and power lines would have
isolation circuits to prevent ground loops or noise from contaminating the
sensitive analog circuits.
Conclusion
In modern electronic systems, particularly in wearable medical devices and portable
electronics, isolating the analog and digital domains is crucial for maintaining signal
integrity, preventing noise interference, and ensuring user safety. When combined with
charging on the go, isolation becomes even more important to protect sensitive analog
circuits from noise generated by external power sources or wireless charging systems.
By employing techniques like power isolation, signal isolation, and ground separation, it
is possible to create a robust and efficient system that remains operational and accurate
even during charging.
Wireless Charging Using Charging Coils
Introduction
Wireless charging is a technology that allows electrical energy to be transferred from a
power source to a device without the need for physical connectors or cables. This is
accomplished using charging coils to create a magnetic field that transfers energy
through electromagnetic induction or magnetic resonance. Wireless charging is
widely used in applications such as smartphones, wearables, medical devices, and
electric vehicles, where convenience and the elimination of physical charging ports are
desired.
The core technology behind wireless charging involves two main components: a
transmitter coil in the charging station and a receiver coil in the device being charged.
Energy is transferred between these coils through a process called inductive coupling
or resonant coupling, depending on the charging method.
Basic Principle of Wireless Charging
Wireless charging works based on Faraday’s law of electromagnetic induction, which
states that a change in magnetic flux through a coil induces an electromotive force
(EMF). This is the fundamental principle used to transfer power from a transmitter
(charging station) to a receiver (the device being charged).
1. Inductive Charging (Electromagnetic Induction)
● In inductive charging, power is transferred between two coils (the transmitter
coil and the receiver coil) that are placed in close proximity. When an alternating
current (AC) flows through the transmitter coil, it generates a time-varying
magnetic field. This changing magnetic field induces a voltage in the receiver
coil, which is then used to charge the device’s battery.
● Energy Transfer: The efficiency of inductive charging is strongly dependent on
the alignment and distance between the transmitter and receiver coils. Typically,
inductive charging systems work efficiently only at short distances (a few
millimeters).
2. Resonant Inductive Charging (Magnetic Resonance)
● Resonant charging works on a similar principle as inductive charging but adds
the concept of resonance to improve efficiency over longer distances. In this
method, both the transmitter and receiver coils are tuned to resonate at the same
frequency.
● By using resonance, the energy transfer becomes more efficient even if the
distance between the coils is greater, or if the alignment is less precise. This
method allows for mid-range wireless charging distances (up to several
centimeters) and supports the charging of multiple devices simultaneously.
Wireless Charging System Components
A typical wireless charging system consists of the following components:
1. Transmitter (Charging Station)
● Power Source: The transmitter is connected to a power source (AC mains or DC
power) to generate the necessary current.
● Transmitter Coil: This is the core element of the transmitter, consisting of a
copper coil that generates a magnetic field when an alternating current flows
through it.
● Power Electronics: The transmitter uses a power management circuit to
control the frequency and strength of the alternating current supplied to the coil.
The AC current is typically in the range of 20 kHz to 200 kHz for inductive
charging systems.
● Control Unit: The transmitter has a control system that manages the charging
process, detects the presence of a receiver, and adjusts power output as
necessary to ensure safe and efficient energy transfer.
2. Receiver (Device Being Charged)
● Receiver Coil: This coil is embedded in the device being charged (e.g., a
smartphone or wearable device). It captures the magnetic field generated by the
transmitter coil and converts it back into an electric current.
● Rectifier Circuit: The alternating current (AC) induced in the receiver coil is
converted into direct current (DC) by a rectifier circuit, which is necessary for
charging the device’s battery.
● Power Management Unit: This circuit regulates the voltage and current to
ensure the device’s battery is charged efficiently and safely. It also handles
protection features, such as overvoltage, overheating, and short-circuit
protection.
● Communication System: Most wireless charging systems include a
communication channel between the transmitter and receiver to manage the
charging process. The receiver sends feedback to the transmitter to control the
power transfer, ensuring the correct amount of energy is delivered.
Wireless Charging Process
1. Power Transmission Setup:
○ The transmitter coil is connected to an AC power source, which generates
an alternating current in the coil. This creates an oscillating magnetic field
around the coil.
2. Magnetic Field Coupling:
○ When the receiver coil, embedded in the device, is placed near the
transmitter coil, the magnetic field generated by the transmitter coil
induces an alternating voltage in the receiver coil due to electromagnetic
induction.
3. Rectification and Power Regulation:
○ The alternating current in the receiver coil is rectified to direct current by
the rectifier circuit. This DC current is then regulated by the power
management circuit to ensure the device’s battery receives the correct
voltage and current for safe charging.
4. Feedback Control:
○ A communication protocol is used to send data back and forth between
the transmitter and receiver. For example, the receiver may request a
reduction in power if the battery is nearing full charge or if the device is
overheating. This communication typically happens through low-power
load modulation or via additional communication coils.
5. Battery Charging:
○ The regulated DC power is supplied to the device’s battery, allowing it to
charge. Throughout the process, the system monitors the charging
conditions and adjusts the power transfer as needed.
Coil Design and Efficiency Factors
The efficiency of wireless charging is influenced by several factors related to the coil
design and system configuration:
1. Coil Size and Shape:
○ Larger coils can generate stronger magnetic fields, allowing for more
efficient power transfer over greater distances. However, there are
trade-offs with the size of the device and coil placement. In portable
devices, the coils are typically flat and compact.
○ Circular or spiral coils are the most common shapes used for wireless
charging. Their geometry affects the distribution of the magnetic field and,
consequently, the power transfer efficiency.
2. Coil Alignment:
○ For optimal power transfer, the transmitter and receiver coils must be
properly aligned. Misalignment reduces the coupling efficiency, which can
lead to slower charging times or the need for higher power input to
maintain effective charging.
3. Frequency of Operation:
○ The frequency at which the coils operate significantly impacts the
efficiency of power transfer. Inductive systems typically operate at lower
frequencies (around 20-200 kHz), while resonant systems can operate
at higher frequencies (in the MHz range), allowing for more efficient
power transfer over longer distances.
4. Distance Between Coils:
○ The distance between the transmitter and receiver coils is a key
determinant of the efficiency of wireless charging. In most consumer
devices, this distance is kept small (a few millimeters to a few
centimeters) to maximize energy transfer. In resonant systems, however,
the distance can be increased, although this typically requires careful
tuning of the resonant frequencies.
5. Shielding and EMI Management:
○ Wireless charging systems are prone to electromagnetic interference
(EMI), which can affect nearby electronics or cause heating in unintended
areas. Shielding materials, such as ferrite sheets, are used to direct the
magnetic field and reduce stray interference. EMI management is
particularly important in systems with sensitive analog components or in
crowded environments with multiple electronic devices.
Standards for Wireless Charging
Wireless charging is governed by several standards to ensure interoperability between
different devices and chargers. The two most common standards are:
1. Qi (Wireless Power Consortium - WPC):
○ The Qi standard is the most widely used standard for inductive wireless
charging, particularly for smartphones, tablets, and wearable devices. It
operates in the 100-200 kHz range and supports power levels from a few
watts (for small devices) to higher wattages (up to 15-30W or more for
fast charging).
2. AirFuel (Formerly Rezence):
○ The AirFuel standard uses resonant inductive charging, which allows
for greater flexibility in device placement and the ability to charge multiple
devices at once. AirFuel typically operates in the 6.78 MHz range and is
more suited to mid-range wireless charging applications.
Advantages of Wireless Charging Using Coils
1. Convenience: Wireless charging eliminates the need for physical connectors
and cables, which can wear out over time or be inconvenient to use.
2. Waterproofing and Durability: Devices designed with wireless charging do not
need exposed charging ports, which can improve their resistance to water, dust,
and damage.
3. Reduced Wear and Tear: Since there are no mechanical connectors, wireless
charging systems reduce the wear and tear associated with plugging and
unplugging cables.
4. Charging Multiple Devices: Resonant wireless charging systems can charge
multiple devices simultaneously using a single charging station, without needing
precise alignment of the coils.
Challenges of Wireless Charging
1. Efficiency: Wireless charging is generally less efficient than wired charging due
to losses in energy transfer. The efficiency typically ranges between 70-90% for
inductive charging systems, with resonant systems offering slightly higher
efficiency over greater distances.
2. Heat Generation: Due to inefficiencies in energy transfer, wireless charging
systems can generate more heat compared to wired chargers. Proper thermal
management is required to avoid overheating during charging.
3. Slower Charging Speeds: Wireless charging, especially over longer distances
or with lower coupling efficiency, can result in slower charging times compared to
traditional wired charging systems.
Conclusion
Wireless charging using charging coils is an evolving technology that offers
significant convenience and flexibility in various applications, from consumer electronics
to medical devices. By utilizing inductive or resonant magnetic
